Rittal air conditioning-Air throughput 20–55m3/h

SK3238100 Rittal air conditioning TopTherm fan-and-filter units - Rittal enclosures Rittal electric cabinet Rittal busbar Rittal fan Rittal PDU SK3238.100

Source: edited by this website Author:stationmaster 7/6/2023 543

Rittal air conditioning TopTherm fan-and-filter units packaging unit 1 piece Weight/pack 0.9kg

中文版：SK3238100
Product brand: Rittal

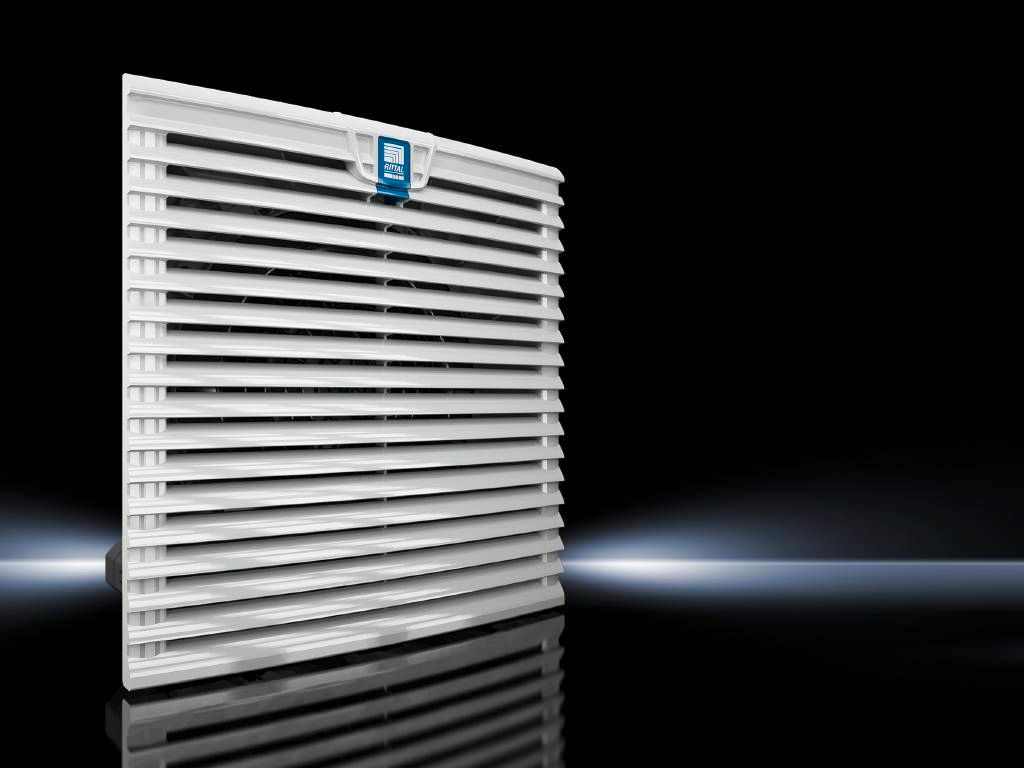

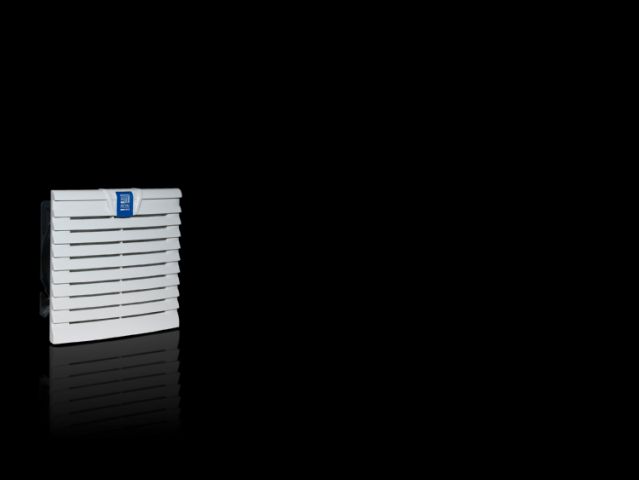

Rittal Air Conditioners TopTherm fan-and-filter units Model: SK3238100

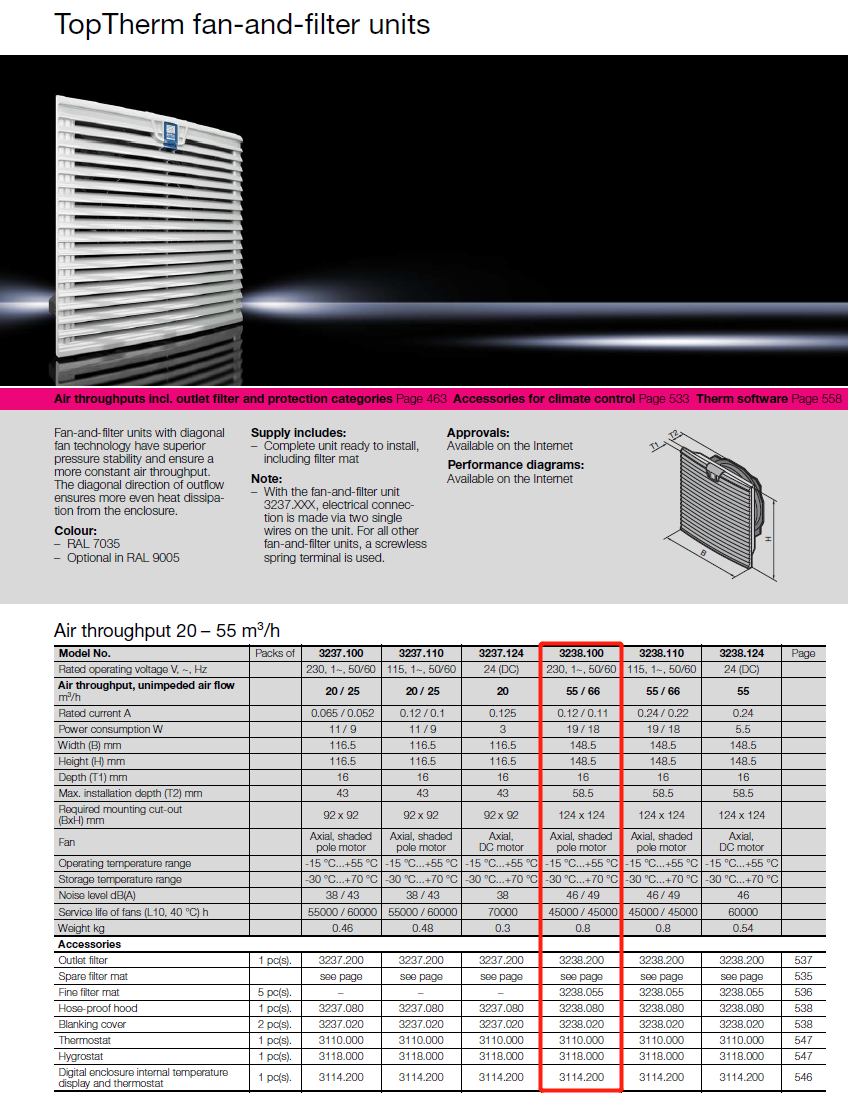

TopTherm fan-and-filter units
Complete fan unit for tool-free mounting on surfaces. Air throughput from 20 - 900 m³/h, standard protection category IP 54.

SK Fan-and-filter unit TopTherm, 52/63m³/h, 230V,1~,50/60Hz, WHD: 148.5x148.5x16mm
■ Rittal Air Conditioners Design

wall-mounted

■ Rittal Air Conditioners Product description

Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure.

■ Rittal Air Conditioners Product modification

The cover for the connection clamp has not been part of the TopTherm fan-and-filter units since May 2024. In testing, it proved not to be necessary to meet the standard, and affects neither function nor operational reliability.

■ Rittal Air Conditioners Colour

RAL7035( Rittal cabinet Rittal air conditioner color chart )

■ Rittal Air Conditioners Supply includes

Complete unit ready to install, including chopped-fibre filter mat

■ Rittal Air Conditioners Fan

Axial, shaded pole motor

■ Rittal Air Conditioners Air throughput, unimpeded airflow (with chopped-fibre filter)

At 50Hz: 52m³/h

At 60Hz: 63m³/h

■ Rittal Air Conditioners Air throughput, unimpeded airflow (with pleated filter)

At 50Hz: 63m³/h

At 60Hz: 72m³/h

■ Rittal Air Conditioners Air throughput with outlet filter including chopped-fibre filter mat (quantity x order number)

1xSK3238200: 36/42m³/h

2xSK3238200: 46/54m³/h

■ Rittal Air Conditioners Rated operating voltage

230V,1~,50Hz/60Hz

■ Rittal Air Conditioners Power consumption Pel

At 50Hz: 15W

At 60Hz: 14W

■ Rittal Air Conditioners Rated current max.

At 50Hz: 0.12A

At 60Hz: 0.09A

■ Rittal Air Conditioners Dimensions

Width: 148.5mm

Height: 148.5mm

■ Rittal Air Conditioners Mounting cut-out

Cut-out width: 124mm

Cut-out height: 124mm

■ Rittal Air Conditioners Installation depth

58.5mm

■ Rittal Air Conditioners IP protection category to IEC 60 529

IP54 with chopped-fibre filter/pleated filter

IP56 with chopped-fibre filter/pleated filter and hose-proof hood

■ Rittal Air Conditioners Protection category NEMA

Type 12 with chopped-fibre filter/pleated filter

Type 3

Type 3R

Type 4

Type 4X with chopped-fibre filter/pleated filter and hose-proof hood

■ Rittal Air Conditioners Pre-fuse

Miniature circuit-breaker/fuse: 2 A

■ Rittal Air Conditioners Note

To increase the air throughput, a pleated filter may optionally be used (see characteristic curve). Suitable for use with fan-and-filter units, roof-mounted fans and outlet filters.

With the fan-and-filter unit 3237.XXX, electrical connection is made via two single wires (length approx. 300mm) on the unit, for all other fan-and-filter units, a screwless spring terminal is used

■ Rittal Air Conditioners Service life of fans (L10, 40°C)

At 50Hz: 68,200h

At 60Hz: 68,200h

■ Rittal Air Conditioners Operating temperature range

-15°C...55°C

■ Rittal Air Conditioners Storage temperature range

-30°C...70°C

■ Rittal Air Conditioners Noise level

At 50Hz: 46dB(A)

At 60Hz: 49dB(A)

■ Rittal Air Conditioners Packs of

1pc(s).
