Rittal air conditioning-Output class 500W,TopTherm wall-mounted cooling unit Blue e

SK3303500 Rittal air conditioner 230V500W width 280 height 550 depth 210 steel plate wall-mounted cooling device TopTherm Blue e-SK3303.500

Source: edited by this website Author:stationmaster 7/20/2023 191

Rittal air conditioner packaging 1 piece weighing 17.0KG

中文版 SK3303500
Product brand: Rittal

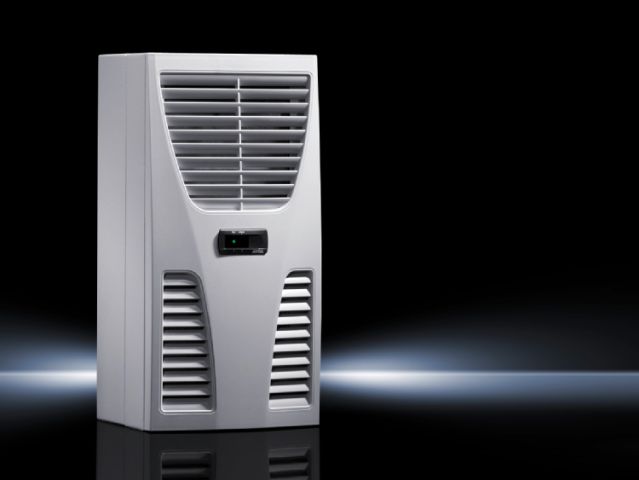

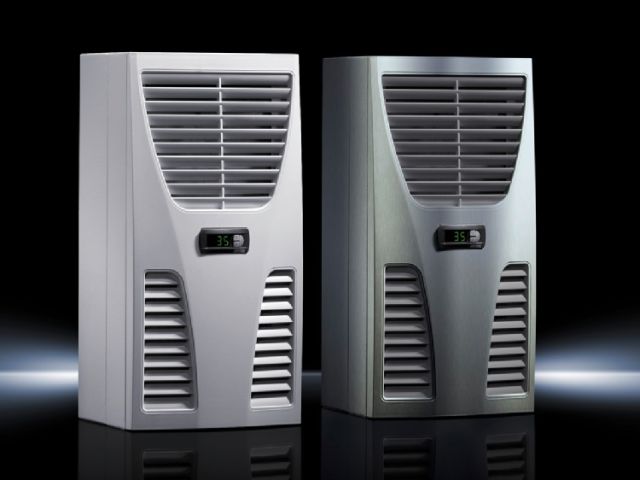

Rittal air conditioning TopTherm wall-mounted cooling unit Blue e Model: SK3303500
SK cooling unit Blue e, wall-mounted, 0.55 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 280 x 550 x 210 mm

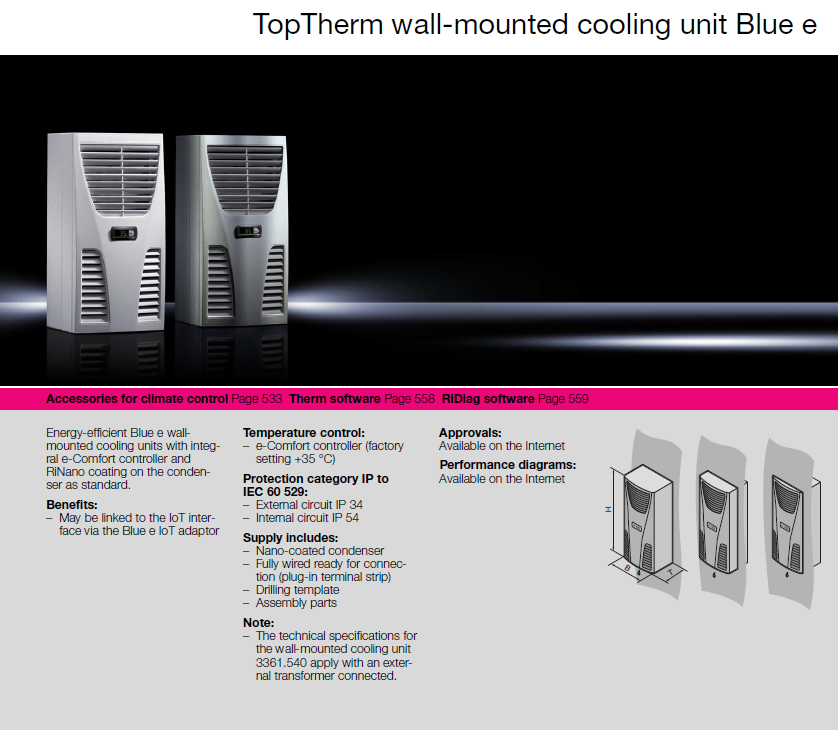

Energy-efficient Blue e wall-mounted cooling units in the output categories 300 W to 4000 W and with integral electrical condensate evaporator (from 1000 W). Available in the special formats "horizontal" and "flat".

■ Rittal Air Conditioners Product description

Energy-efficient Blue e wall-mounted cooling units in the output categories 300 W to 4000 W and with integral electrical condensate evaporator (from 1000 W).

■ Rittal Air Conditioners Benefits

May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller

■ Rittal Air Conditioners Material

Sheet steel

■ Rittal Air Conditioners Colour

RAL 7035

■ Rittal Air Conditioners Supply includes

Condenser with hydrophobic RiNano coating

Fully wired ready for connection (plug-in terminal strip)

Drilling template

Assembly parts

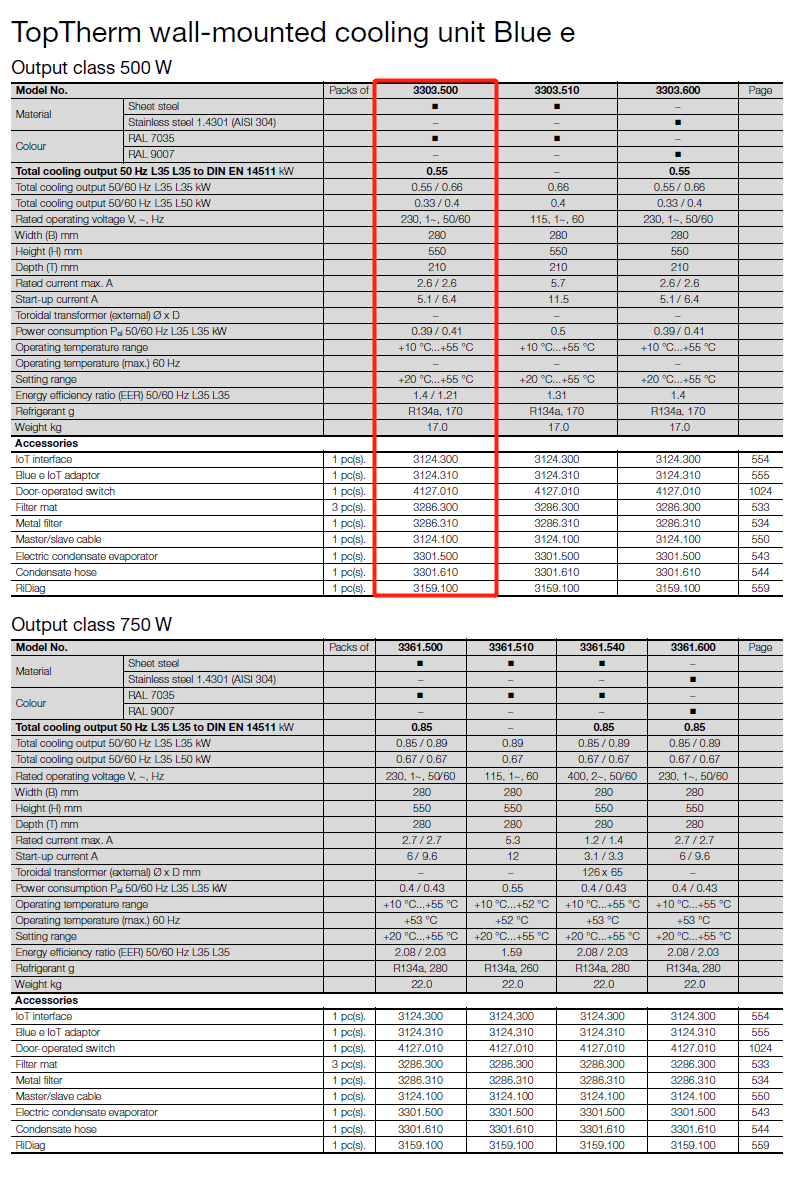

■ Rittal Air Conditioners Total cooling output to DIN EN 14511

Cooling output L35 L35/50 Hz: 0.55 kW

Cooling output L35 L35/60 Hz: 0.66 kW

Cooling output L35 L50/50 Hz: 0.33 kW

Cooling output L35 L50/60 Hz: 0.4 kW

■ Rittal Air Conditioners Rated operating voltage

230 V, 1~, 50 Hz/60 Hz

■ Rittal Air Conditioners Rated current max.

At 50 Hz: 2.6 A

At 60 Hz: 2.6 A

■ Rittal Air Conditioners Start-up current max.

At 50 Hz: 5.1 A

At 60 Hz: 6.4 A

■ Rittal Air Conditioners Air throughput (unimpeded air flow)

External circuit: 315 m3/h

Internal circuit: 265 m3/h

■ Rittal Air Conditioners Energy efficiency ratio (EER) 50/60 Hz L35 L35

Refrigeration factor L35 L35 (EER) 50 Hz: 1.4

Refrigeration factor L35 L35 (EER) 60 Hz: 1.21

■ Rittal Air Conditioners Design

wall-mounted

■ Rittal Air Conditioners Dimensions

Width: 280 mm

Height: 550 mm

Depth: 210 mm

■ Rittal air conditioning Protection category to IEC 60 529

External circuit IP 34

Internal circuit IP 54

■ Rittal Air Conditioners Protection category NEMA

UL Type 12

■ Rittal Air Conditioners Refrigerant/cooling medium

Refrigerant: R134a

Quantity: 0.17 kg

Global Warming Potential (GWP): 1,430

CO₂ equivalent (CO₂e): 0.24 t

■ Rittal Air Conditioners Temperature control

e-Comfort controller (factory setting +35 °C)

■ Rittal Air Conditioners Operating temperature range

10 °C...55 °C

■ Rittal Air Conditioners Storage temperature range

-40 °C...70 °C

■ Rittal Air Conditioners Setting range

20 °C...55 °C

■ Rittal Air Conditioners Power consumption Pel

Power consumption L35 L35/50 Hz: 0.39 kW

Power consumption L35 L35/60 Hz: 0.41 kW

Power consumption L35 L50/50 Hz: 0.45 kW

Power consumption L35 L50/60 Hz: 0.42 kW

■ Rittal Air Conditioners Permissible operating pressure (p. max.)

28 bar

Pre-fuse

■ Rittal Air Conditioners Miniature circuit-breaker/fuse: 10 A

Packs of

1 pc(s).

Weight/pack

17.00 kg

See page 478 of rittal36 sample (36 sample download) for details. Download item 5 after opening

The following data download extraction code：CJKJ

1、Rittal Air Conditioning SK3303500_instructions

2、Rittal Air Conditioning SK3303500_EAC_20_1277

3、Rittal Air Conditioning SK3303500_Technology system directory_3_6104

4、Rittal Air Conditioning SK3303500_The technical details_3_4586

5、Rittal Air Conditioning SK3303500_Conformance statement_20_595

6、Rittal Air Conditioning SK3303500_Declaration_of_conformity_UK_EN

7、Rittal Air Conditioning SK3303500_CSA_20_150

8、Rittal Air Conditioning SK3303500_UL_+_C-UL_-_FTTA_20_1436

9、Rittal Air Conditioning SK3303500_UR_+_C-UR_20_174

10、Rittal Air Conditioning SK3303500_Declaration of conformity - F-gas regulation

11、Rittal Air Conditioning SK3303500_Safety_data_sheet_refrigerant_CS

12、Rittal Air Conditioning SK3303500_White Paper

13、Rittal Air Conditioning SK3303500_Instructions_CS

14、Rittal Air Conditioning SK3303500_Safety_instructions_Global
