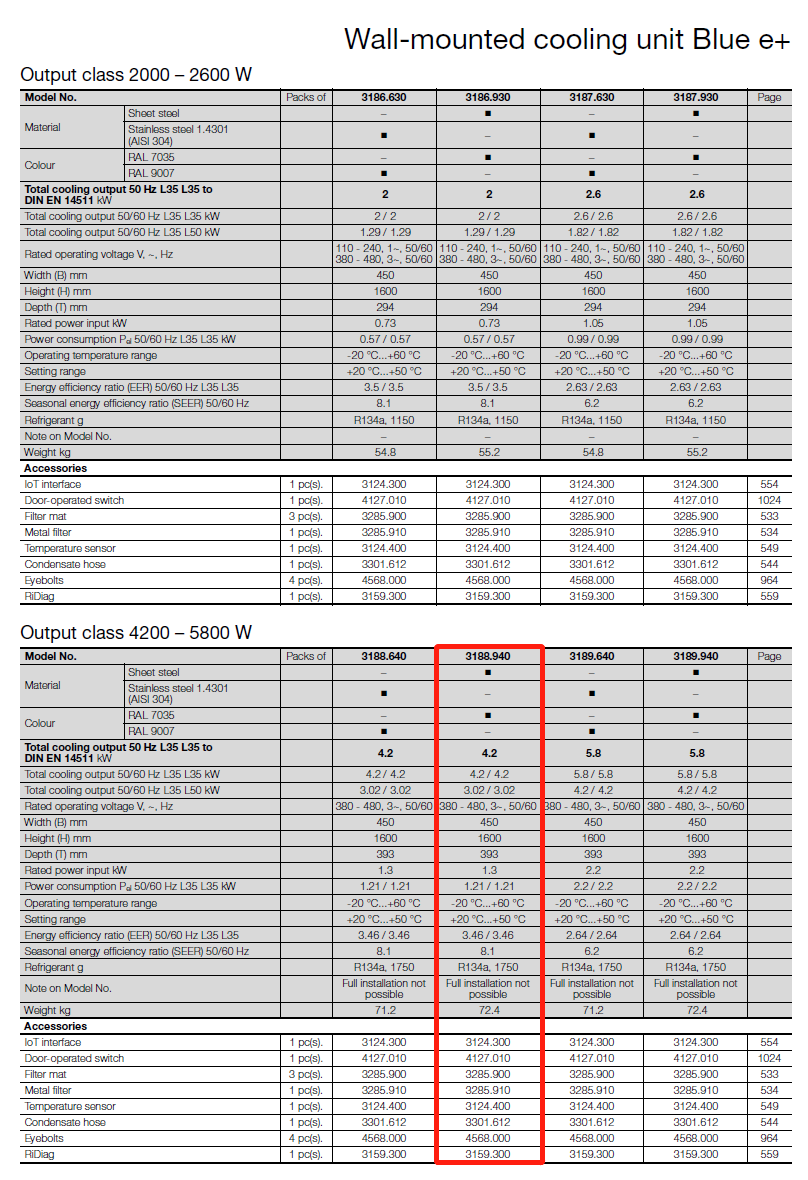

SK3188940 Rittal air conditioner wall-mounted Blue e+380V4200W Width 450 Height 1600 Depth 393 Opening Width 433 Height 1579 Air flow The external circuit and internal circuit are both 2300m3/h-Made by Rittal in Germany-SK3188.940

Source: edited by this website Author:stationmaster 7/25/2023 200


Rittal air conditioner wall-mounted cooling device packaging 1 piece weighing 72.4KG

中文版 SK3188940
Product brand: Rittal

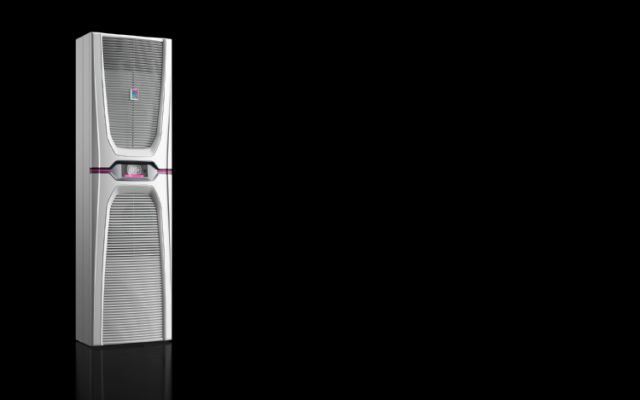

Rittal Air Conditioner Wall-mounted cooling unit Blue e+ Model: SK3188940

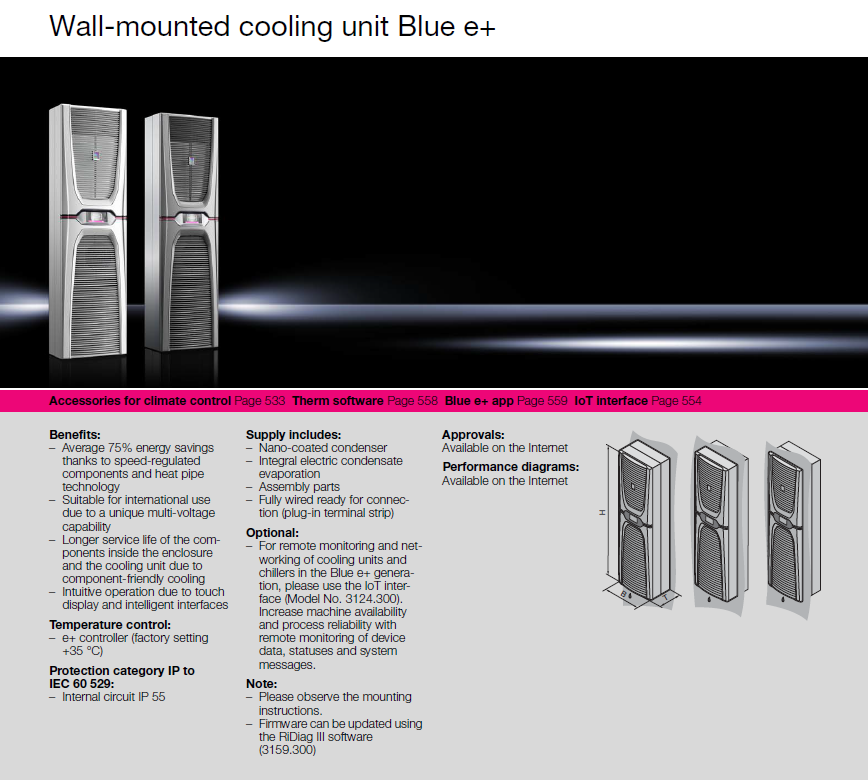

SK cooling unit Blue e+, wall-mounted, 4.2 kW, 380-480 V, 3~, 50-60 Hz, Sheet steel, WHD: 450 x 1600 x 393 mm.Energy-efficient Blue e+ wall-mounted cooling units in output categories 1600 W to 5800 W. Average energy savings of 75% can be achieved with speed-regulated components and heat pipe technology. Available in sheet steel and stainless steel versions.
■ Rittal Air Conditioner Product description
For mounting the roof-mounted unit. The cut-out in the door is arranged so that the roof-mounted cooling unit is positioned centrally on the door.
■ Rittal Air Conditioner Benefits
Average 75% energy savings thanks to speed-regulated components and heat pipe technology
Suitable for international use due to a unique multi-voltage capability
Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling
Intuitive operation due to touch display and intelligent interfaces
■ Rittal Air Conditioner Material
Sheet steel
■ Rittal Air Conditioner Supply includes
Condenser with hydrophobic RiNano coating
Integral electric condensate evaporation
Assembly parts
Fully wired ready for connection (plug-in terminal strip)
For remote monitoring and networking of cooling units and chillers in the Blue e+ generation, please use the IoT interface (Model No. 3124.300). Increase machine availability and process reliability with remote monitoring of device data, statuses and system messages.
■ Rittal Air Conditioner Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 4.2 kW
Cooling output L35 L35/60 Hz: 4.2 kW
Cooling output L35 L50/50 Hz: 3.02 kW
Cooling output L35 L50/60 Hz: 3.02 kW
■ Rittal Air Conditioner Rated operating voltage
380 V - 480 V, 3~, 50 Hz/60 Hz
Please observe the mounting instructions.
By downloading the software, a contract is concluded between the contractual partner and Rittal for the free use of the software in accordance with these licence conditions.
■ Rittal Air Conditioner Note on Model No.
Tolerance: 380 V -10% (342 V) and 480 V +5% (509 V)
Full installation not possible
■ Rittal Air Conditioner Rated power input
1.3 kW
■ Rittal Air Conditioner Air throughput (unimpeded air flow)
External circuit: 2,300 m3/h
Internal circuit: 2,300 m3/h
■ Rittal Air Conditioner Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 3.46
Refrigeration factor L35 L35 (EER) 60 Hz: 3.46
■ Rittal Air Conditioner Seasonal energy efficiency ratio (SEER) 50/60 Hz
8.1
wall-mounted
■ Rittal Air Conditioner Dimensions
Width: 450 mm
Height: 1,600 mm
Depth: 393 mm
■ Rittal Air Conditioner Required mounting cut-out
Cut-out width: 433 mm
Cut-out height: 1,579 mm
■ Rittal Air Conditioner Protection category to IEC 60 529
Internal circuit IP 55
■ Rittal Air Conditioner Protection category NEMA
UL Type 3R/12
■ Rittal Air Conditioner Refrigerant/cooling medium
Refrigerant: R134a
Quantity: 1.75 kg
■ Rittal Air Conditioner Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 2.5 t
■ Rittal Air Conditioner Temperature control
e+ controller (factory setting +35 °C)
■ Rittal Air Conditioner Operating temperature range
-20 °C...60 °C
■ Rittal Air Conditioner Storage temperature range
-40 °C...70 °C
■ Rittal Air Conditioner Operating temperature range of refrigerant circuit (active)
3 °C...60 °C
■ Rittal Air Conditioner Heat pipe operating temperature range
-20 °C...45 °C
■ Rittal Air Conditioner Setting range
20 °C...50 °C
■ Rittal Air Conditioner Power consumption Pel
Power consumption L35 L35/50 Hz: 1.21 kW
Power consumption L35 L35/60 Hz: 1.21 kW
Power consumption L35 L50/50 Hz: 1.28 kW
Power consumption L35 L50/60 Hz: 1.28 kW
■ Rittal Air Conditioner Permissible operating pressure (p. max.)
24 bar
Packs of
1 pc(s).
Weight/pack
72.40kg


Spare parts
Item Order number Wish list Name Valid from
1 3398416 Compressor - - -
5 3398415 Radial fan - - -
10 3398415 Radial fan - - -
15 3398406 Accessory bag - - -

16 3398404 Connector - - -

20 3398414 Expansion valve - - -
21 3398343 Coil for expansion valve - - -
25 3398413 Filter dryer - - -
30 3398336 Pressostat - - -
40 3398354 I/O board - - -
41 3398408 Inverter - - -
45 3398346 Grille - - -
46 3398347 Grille - - -
47 3398465 Opening limiter for louvred grilles - - -
48 3398152 Mounting clips - - -
49 3398153 Mounting attachment - - -
50 3398348 Cover - - -
55 3398337 Display 25.3.2017
70 3398411 Cable set, temperature sensor - - -
75 3398405 Cover - - -
90 3398410 Evaporator coil - - -
100 3398409 Condenser - - -
101 3398350 Condensate evaporator - - -
102 3398412 Display cable - - -
190 3398649 Cable AC mains input - -





See page 489of rittal36 sample (36 sample download) for details. Download item 5 after opening
